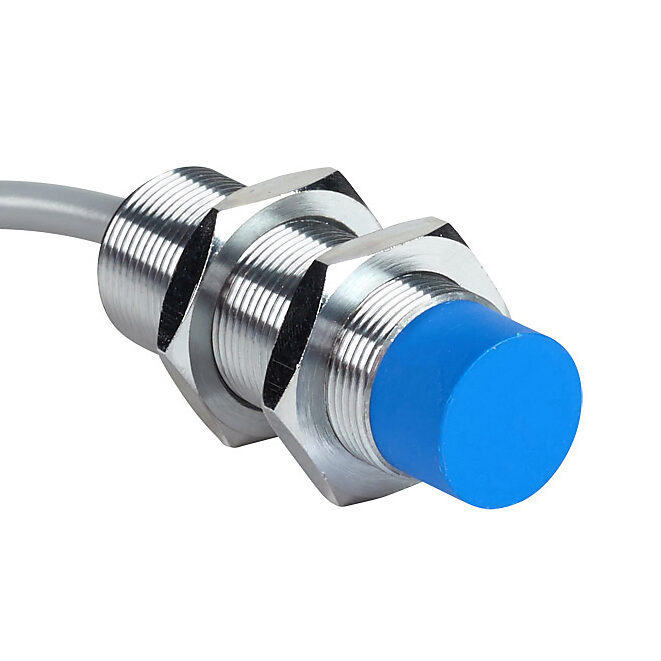

Contrinex inductive proximity sensor, tubular, 18mm diameter x 51mm body, chrome-plated brass housing, PNP, N.O. output, 20mm sensing distance, non-flush, 500 Hz switching frequency, IP67, pigtail.

Search for Similar Items To search for items with similar technical attributes, check the box in front of those attributes for which you would like to see similar items. Then click the button below. Technical Attributes
Brand Contrinex
Item Proximity sensor
Sensor Type Inductive
Application Standard duty
Shape Tubular
Housing Size 18mm diameter x 51mm body
Housing Material Chrome-plated brass
Barrel Type Threaded
Sensing Method Triple sensing
Adjustable No
Number of Wires 3
Switching Output PNP
Operation Mode N.O. output
Sensing Distance 20mm
Mounting Type Non-flush
IO-Link Compatible Yes
Switching Frequency 500 Hz
Operating Voltage 10-30 VDC
Operating Temperature -25 to 70c
Weld Field Immune No
Chip Immune No
IP Rating IP67
Connection Pigtail
Communication Port and Connection Type(s) (1) 3-wire pigtail (IO-Link) port(s)
Port Protocol(s) IO-Link Class A Device
Port Speed(s) IO-Link COM2
IO-Link Version IO-Link v1.0
Standard I/O Mode Supported Yes
Conductor Size 22 AWG
Cable Length 6.5ft/2m
Includes Mounting hardware
